This is an Arduino sketch for DFPlayer Mini MP3 module
written by : enjoyneering
source code: https://github.com/enjoyneering/DFPlayer

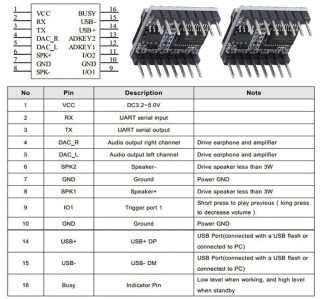

DFPlayer Mini features:
- 3.2v..5.0v, typical 4.2v
- 15mA without flash drive, typical 24mA
- 24-bit DAC with 90dB output dynamic range and SNR over 85dB
- micro SD-card, up to 32GB (FAT16, FAT32)
- USB-Disk up to 32GB (FAT16, FAT32)
- supports mp3 sampling rate 8KHz, 11.025KHz, 12KHz, 16KHz, 22.05KHz, 24KHz, 32KHz, 44.1KHz, 48KHz
- supports up to 100 folders, each folder can be assigned to 001..255 songs
- built-in 3W mono amplifier, NS8002 AB-Class with standby function
- UART to communicate, 9600bps (parity:none, data bits:8, stop bits:1, flow control:none)
NOTE:
- if you hear a loud noise, add a 1K resistor in series with DFPlayer TX pin
- move the jumper from right to left to automatically switch the amplifier to standby
Frameworks & Libraries:
ESP8266 Core - https://github.com/esp8266/Arduino
EspSoftwareSerial - https://github.com/plerup/espsoftwareserial
GNU GPL license, all text above must be included in any redistribution,
see link for details - https://www.gnu.org/licenses/licenses.html
*/
/***************************************************************************************************/
#include <SoftwareSerial.h>
#include <DFPlayer.h>
#define MP3_RX_PIN 14 //GPI14/D2 to DFPlayer Mini TX
#define MP3_TX_PIN 13 //GPI13/D1 to DFPlayer Mini RX
#define MP3_SERIAL_SPEED 9600 //DFPlayer Mini suport only 9600-baud
#define MP3_SERIAL_BUFFER_SIZE 32 //software serial buffer size in bytes, to send 8-bytes you need 11-bytes buffer (start byte+8-data bytes+parity-byte+stop-byte=11-bytes)
#define MP3_SERIAL_TIMEOUT 350 //average DFPlayer response timeout 200msec..300msec for YX5200/AAxxxx chip & 350msec..500msec for GD3200B/MH2024K chip
SoftwareSerial mp3Serial;
DFPlayer mp3;
/**************************************************************************/
/*
setup()
Main setup
NOTE:
- moduleType:
- DFPLAYER_MINI:
- DFPlayer Mini module
- MP3-TF-16P module
- FN-M16P module
- YX5200 chip
- YX5300 chip
- JL AAxxxx chip
- DFPLAYER_FN_X10P:
- FN-M10P module
- FN-S10P module
- FN6100 chip
- DFPLAYER_HW_247A:
- HW-247A module
- GD3200B chip
- DFPLAYER_NO_CHECKSUM:
- no checksum calculation (not recomended for MCU without external
crystal oscillator)
*/
/**************************************************************************/
void setup()
{
Serial.begin(115200);
mp3Serial.begin(MP3_SERIAL_SPEED, SWSERIAL_8N1, MP3_RX_PIN, MP3_TX_PIN, false, MP3_SERIAL_BUFFER_SIZE, 0); //false=signal not inverted, 0=ISR/RX buffer size (shared with serial TX buffer)
mp3.begin(mp3Serial, MP3_SERIAL_TIMEOUT, DFPLAYER_HW_247A, false); //"DFPLAYER_MINI" see NOTE, false=no response from module after the command
//mp3.stop(); //if player was runing during ESP8266 reboot
//mp3.reset(); //reset all setting to default
//mp3.setSource(2); //1=USB-Disk, 2=TF-Card, 3=Aux, 4=Sleep, 5=NOR Flash
//mp3.setEQ(0); //0=Off, 1=Pop, 2=Rock, 3=Jazz, 4=Classic, 5=Bass
mp3.setVolume(8); //0..30, module persists volume on power failure
// mp3.sleep(); //inter sleep mode, 24mA
// mp3.wakeup(2); //exit sleep mode & initialize source 1=USB-Disk, 2=TF-Card, 3=Aux, 5=NOR Flash
// mp3Serial.enableRx(true); //enable interrupts on RX-pin for better response detection, less overhead than mp3Serial.listen()
Serial.println(mp3.getStatus()); //0=stop, 1=playing, 2=pause, 3=sleep or standby, 4=communication error, 5=unknown state
Serial.println(mp3.getVolume()); //0..30
//Serial.println(mp3.getCommandStatus()); //1=module busy, 2=module sleep, 3=request not fully received, 4=checksum not match
//5=requested folder/track out of range, 6=requested folder/track not found
//7=advert available while track is playing, 8=SD card not found, 9=???, 10=module sleep
//11=OK command accepted, 12=OK playback completed, 13=OK module ready after reboot
// mp3Serial.enableRx(false); //disable interrupts on RX-pin, less overhead than mp3Serial.listen()
}
int pno=1;
void loop()
{
//mp3.playTrack(pno); //play track #1, don’t copy 0003.mp3 and then 0001.mp3, because 0003.mp3 will be played firts
//mp3.playMP3Folder(1); //1=track, folder name must be "mp3" or "MP3" & files in folder must start with 4 decimal digits with leading zeros
mp3.playFolder(1, pno); //1=folder/2=track, folder name must be 01..99 & files in folder must start with 3 decimal digits with leading zeros
delay(20000); //play for 30 seconds
mp3.pause();
//Serial.println(mp3.getVolume());
delay(5000);
pno++; //pause for 10 seconds
Serial.println(pno);
}
